Vial integrity failures can result from defects in the glass vial, stopper, crimp seal, or sealing interface. Identifying where leakage occurs is an important part of understanding why a vial has failed container closure integrity testing. Helium leak testing provides quantitative leak-rate data that can help narrow the potential cause.

What Can Cause a Vial Integrity Failure?

A vial container closure system includes the glass vial, elastomer stopper, and aluminum crimp seal. A leak can occur when one of these components is damaged, incorrectly assembled, or affected during manufacturing or handling.

Some leak paths may be too small to identify through routine visual inspection. Helium testing provides quantitative information about whether a gas pathway is present.

How Does Helium Leak Testing Support Root-Cause Analysis?

During testing, the vial is exposed to helium and placed in a test chamber connected to a sensitive detection system. If a leak is present, helium passes through the defect and is detected. The system measures the escaping helium and reports it as a leak rate.

SIMS 1915+ Technology is described with sensitivity down to 1 × 10?¹° mbar·L/sec for applicable vial leak testing configurations. The direct leak-rate measurement provides data that can be compared between samples and test conditions.

Comparing leak rates can help identify patterns associated with a component, sealing area, or assembly condition. The results can then be reviewed alongside physical inspection and manufacturing information to support further analysis.

Where Can Leaks Occur in a Vial?

Leaks can occur at different points within the vial container closure system. SIMS 1915+ Technology can help detect leakage associated with the stopper-to-vial interface, crimp seal, and small defects that may occur during manufacturing or handling.

How Can Leak-Rate Data Help Identify the Cause?

A quantitative leak-rate result provides more information than a simple pass-or-fail result. The data can be compared across failed and acceptable samples to determine whether a pattern exists.

Relevant information can include:

• Vial and stopper dimensions
• Component lot information
• Crimping and assembly conditions
• Visual or microscopic inspection
• Storage or temperature-conditioning conditions
• Results from acceptable control samples

Helium leak testing can form one part of a broader failure analysis process. The leak can be confirmed, individual sample leak rates recorded, suspected areas examined, and failed samples compared with acceptable samples. Retesting after a relevant process or component change can provide additional information.

PTI's helium leak testing is used to support vial failure analysis, package development, tooling qualification, packaging line setup, and validation.

Key Takeaway

Helium leak testing provides quantitative data that can help manufacturers understand vial integrity failures. By comparing leak rates across samples, components, and assembly conditions, the method can help narrow the areas associated with leakage.

SIMS 1915+ Technology provides direct leak-rate measurements for detecting very small vial leaks. When these results are combined with physical inspection and process information, they can provide useful evidence for further root-cause analysis.

Frequently Asked Questions

1.Can helium leak testing identify the exact root cause of a vial failure?

It can help identify and characterize leakage and narrow the areas requiring further analysis. Additional inspection and process data may be needed to establish the physical cause.

2.What vial components can be evaluated?

The glass vial, stopper, crimp seal, and stopper-vial sealing interface can be evaluated using suitable test configurations.

3.Can SIMS 1915+ Technology detect very small vial leaks?

Yes. The technology is described with sensitivity down to 1 × 10?¹° mbar·L/sec for applicable vial leak testing configurations.

Pharmaceutical vials need to remain properly sealed to protect the medicine from contamination and environmental exposure. Even a very small leak can affect the product. Container Closure Integrity (CCI) testing helps detect these leaks and confirm that the vial, stopper, and crimp provide the required protection.

What Is Container Closure Integrity?

Container Closure Integrity (CCI) is the ability of a vial and its closure system to prevent leaks. For pharmaceutical vials, this system usually includes the vial, stopper, and crimp.

A vial may look properly sealed but still have a very small leak. CCI testing helps detect these leaks and check whether the package can protect the medicine from contamination and environmental exposure.

How Can Poor CCI Affect Pharmaceutical Vials?

Poor container closure integrity can allow unwanted substances to enter the vial or product to escape. This may affect product quality, stability, and safety.

How Does Helium Leak Testing Work for Pharmaceutical Vials?

Helium leak testing uses helium as a tracer gas to find very small leaks in sealed vials.

The vial is exposed to helium or filled with helium, depending on the test setup. A helium leak detector then measures helium passing through a leak. The result is provided as a leak rate, giving quantitative information about the amount of leakage.

This makes helium leak testing useful for vial development, validation, stability studies, and leak investigations.

How Can Manufacturers Improve CCI Testing Reliability?

Reliable CCI testing requires the right method, test conditions, and acceptance criteria.

• Select a method suitable for the vial and closure design.
• Define appropriate CCI acceptance criteria.
• Use calibrated reference leak standards where applicable.
• Keep test conditions consistent.
• Condition samples before testing when required.
• Validate the method for the specific package.
• Consider storage and transportation conditions.

How Does Helium Leak Testing Work for Pharmaceutical Vials?

Helium Leak Testing uses helium as a tracer gas to detect very small leaks in pharmaceutical vials. A helium leak detector measures the helium passing through a leak pathway and provides a quantitative leak rate. This helps manufacturers evaluate vial integrity during development, validation, stability studies, and leak investigations.

How Does SIMS 1915+ Support Vial Leak Testing?

SIMS 1915+ Technology is used for pharmaceutical vial leak testing with helium as a tracer gas. It provides quantitative leak-rate measurements and can detect leaks with sensitivity as low as 1 × 10?¹° mbar·L/sec. The technology supports room-temperature and cold-temperature testing and can be configured with suitable fixtures to test different vial and closure designs.

How Does Helium Mass Spectrometry Work for Detecting Small Leaks?

Helium mass spectrometry detects small leaks by using helium as a tracer gas. The sealed vial or package is exposed to helium, and if a leak is present, helium passes through the leak pathway.

The helium leak detector then draws in the gas and uses a mass spectrometer to identify and measure helium. The amount of helium detected is converted into a quantitative leak rate, helping determine how much the package is leaking.

This makes helium mass spectrometry useful for detecting and quantifying very small leak pathways that may not be visible during visual inspection.

What's the Key Takeaway on CCI for Pharmaceutical Vials?

CCI testing helps confirm that pharmaceutical vials are properly sealed and can protect the drug product from leaks and external exposure. A vial may look intact while still having a small leak. Helium Leak Testing can detect and measure these leaks and provide quantitative leak-rate data. SIMS 1915+ Technology supports helium-based vial leak testing and can provide sensitive quantitative results for evaluating vial and closure integrity. The right CCI method should be selected based on the vial design, product requirements, and testing needs.

Frequently Asked Questions

1.Why is container closure integrity crucial for pharmaceutical vials?

CCI helps keep the vial properly sealed and protects the medicine from contamination and outside exposure.

2.Where are the primary points of failure for container closure integrity in vials?

Common failure points include the stopper, vial–stopper seal, and crimp seal. Damage or poor sealing in these areas can cause leaks.

3.What are the consequences of microbial contamination due to compromised vial seals?

A damaged seal can allow microorganisms to enter the vial. This can contaminate the medicine and affect its safety and quality.

Helium leak testing is a deterministic container closure integrity testing method that uses helium to identify and quantify leaks in sealed pharmaceutical vials. The vial is filled or charged with helium and placed under vacuum. If a leak is present, helium escapes through the leak path and is detected by a mass spectrometer.

The method provides a measurable leak rate, allowing manufacturers to compare vial performance against defined acceptance criteria. It can be applied to different vial and closure configurations, including glass and polymeric systems.

Why Is Helium Leak Testing Important for Pharmaceutical Vials?

The vial closure system must maintain its integrity to protect the drug product from external contaminants. Conventional inspection methods may not identify microscopic leak paths, particularly when defects are not visually apparent.

Helium leak testing provides quantitative data that can support container closure integrity evaluation and help manufacturers identify potential weaknesses in vial sealing systems.

What Are the Best Practices for Helium Leak Testing of Pharmaceutical Vials?

Helium leak testing should be considered early in the development process. During R&D, manufacturers can evaluate different vial and closure configurations to understand their impact on container closure integrity.

Early testing can help:

• Identify potential sealing weaknesses
• Compare vial, stopper, and crimp configurations
• Establish suitable test parameters
• Support package design decisions before production

How Should Quantitative Acceptance Criteria Be Established?

A reliable helium leak test requires clearly defined acceptance criteria. These limits should consider the specific package configuration, product requirements, storage conditions, and potential risks associated with leakage.

Quantitative leak rate measurements provide an objective basis for determining whether a vial meets its specified integrity requirements.

Why Are Calibrated Helium Leak Standards Important?

Calibrated helium leak standards are important for method validation and routine system verification. They help confirm that the leak detection system is performing correctly and producing reliable measurements.

Regular verification can support:

• Instrument performance checks
• Method validation
• System suitability testing
• Ongoing measurement consistency

How Can Test Conditions Be Controlled for Reliable Results?

Controlled test conditions are essential for obtaining repeatable results. Parameters such as vacuum conditions, helium concentration, test time, fixture configuration, and instrument performance should be standardized.

Manufacturers should also:

• Follow documented testing procedures
• Routinely verify instrument performance
• Perform preventive maintenance
• Minimize operator-dependent variability

Why Should Pharmaceutical Vials Be Tested Under Relevant Temperature Conditions?

Environmental conditions can influence the performance of vial closure systems. Products stored or transported under refrigerated or ultra-low-temperature conditions may require integrity testing under relevant temperatures.

Temperature-based testing can help determine whether changes in materials or sealing interfaces affect container closure integrity during storage and transportation.

How Can Helium Leak Testing Be Applied From R&D to Production?

Helium leak testing can be incorporated throughout the product lifecycle rather than being limited to development.

Typical applications include:

• Package development and R&D
• Method validation
• Tooling qualification
• Production line setup
• Quality control
• Ongoing package evaluation

Using a consistent testing strategy can help manufacturers identify changes in package performance and maintain container closure integrity.

Conclusion

Reliable helium leak testing of pharmaceutical vials requires a structured approach that begins during R&D and continues through production. Establishing quantitative acceptance criteria, using calibrated leak standards, maintaining controlled test conditions, and evaluating relevant temperature conditions can improve the reliability of container closure integrity testing.

By applying these practices throughout the product lifecycle, pharmaceutical manufacturers can obtain quantitative evidence of vial integrity and better understand the performance of their container closure systems.

Container closure integrity (CCI) is one of the most important requirements for sterile pharmaceutical packaging. Injectable drugs must remain protected from contamination and environmental exposure from the time they are filled until they are administered to patients. While the vial itself is designed to provide protection, the stopper and crimp seal are the components that complete the closure system. Their quality has a direct impact on the ability of the package to maintain a reliable seal.

What Is Container Closure Integrity?

Container closure integrity (CCI) is the ability of a sealed pharmaceutical package to keep the product protected throughout its shelf life. It prevents contaminants such as microorganisms, moisture, and gases from entering the container while also preventing the drug product from leaking out.

For sterile injectable drugs, maintaining a reliable seal is critical for preserving product quality, stability, and patient safety. Even a microscopic leak may not be visible, but it can allow contaminants to enter the vial over time, potentially affecting the product before it reaches the patient.

The Role of Stoppers in Vial Sealing

The elastomeric stopper forms the primary seal between the vial and the external environment. When properly compressed, it creates a tight barrier that prevents contaminants from entering the package while keeping the drug product securely contained.

The aluminum crimp seal holds the stopper in place and maintains the compression required for an effective seal. Both components must work together to achieve reliable container closure integrity. If the stopper is damaged, improperly positioned, or incompatible with the vial, or if the crimp seal is applied incorrectly, the sealing performance may be compromised.

How Crimp Seal Quality Affects Container Closure Integrity?

Crimp seal quality directly influences the effectiveness of the closure system. Too little crimping force may leave the stopper insufficiently compressed, while excessive force can damage the stopper or deform the seal. Inconsistent sealing can create microscopic leak paths that are not visible during routine visual inspection.

Other factors that may affect closure quality include damaged stoppers, vial finish defects, dimensional variations between components, and improper stopper placement. Although these issues may appear minor, they can significantly reduce the package's ability to maintain sterility throughout storage and distribution.

Why Microscopic Leaks Are Difficult to Detect?

Many closure defects are too small to be identified through visual inspection alone. Traditional inspection methods may not detect microscopic leaks that can allow gases, moisture, or microorganisms to enter the vial over time. As pharmaceutical products such as biologics, vaccines, and other sterile injectables become increasingly sensitive, identifying these extremely small leaks has become more important than ever.

Reliable container closure integrity testing provides manufacturers with greater confidence that packaging systems will perform as intended throughout the product lifecycle.

How SIMS 1915+ Uses Helium Leak Testing for Vial Inspection?

Helium leak testing offers a highly sensitive and deterministic approach for evaluating vial container closure integrity. The SIMS 1915+ uses helium as a tracer gas combined with mass spectrometry to detect and quantify extremely small leaks that may not be identified using conventional inspection methods.

The system provides quantitative leak rate measurements with exceptional sensitivity, making it suitable for package development, package design qualification, process validation, quality investigations, and production support. By accurately identifying microscopic leak paths, manufacturers can evaluate stopper performance, crimp seal consistency, and overall package integrity with confidence.

Benefits of Helium Leak Testing for Vial Containers

Helium leak testing provides several advantages for pharmaceutical manufacturers:

• Detects extremely small leaks with high sensitivity.
• Provides deterministic and quantitative test results.
• Supports package development and process validation.
• Helps identify sealing defects during quality investigations.
• Improves confidence in container closure integrity.
• Supports regulatory expectations for deterministic CCIT methods.
• Helps protect sterile products throughout storage and distribution.

Conclusion

Stopper and crimp seal quality are critical factors in maintaining vial container closure integrity. Even small variations in sealing components or sealing processes can create microscopic leaks that affect product quality and sterility. By combining high-quality packaging components with advanced deterministic technologies such as SIMS 1915+, manufacturers can accurately verify package integrity, identify defects early, and ensure sterile pharmaceutical products remain protected from manufacturing through patient use.

Vials are widely used to package biologics, vaccines, and injectable drugs. To keep these products safe and effective, the vial and its closure system must remain properly sealed throughout storage and distribution.

Even very small leaks can allow moisture, oxygen, or contaminants to enter the package, potentially affecting product quality and sterility. Because these defects are often too small to be seen, pharmaceutical manufacturers need sensitive testing methods to detect them.

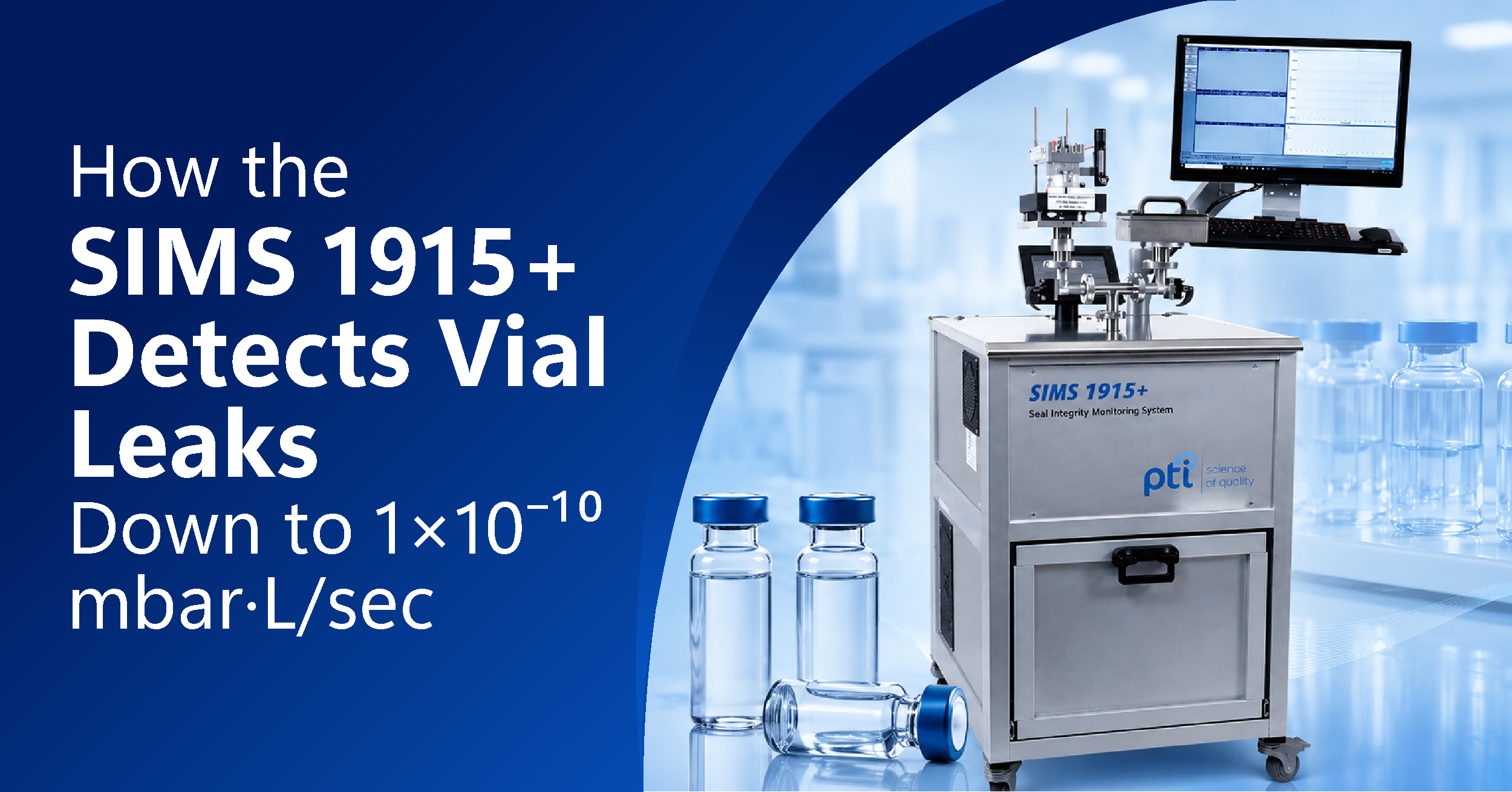

The SIMS 1915+ is a helium leak detection technology designed to identify extremely small leaks in vial packaging. With sensitivity down to 1×10?¹° mbar·L/sec, it helps manufacturers evaluate container closure integrity and better understand package performance.

Why is Vial Leak Detection Important?

Pharmaceutical vials are designed to maintain a sterile barrier throughout a product's lifecycle. However, even microscopic defects can create pathways for moisture, oxygen, or contaminants to enter the package.

These defects may not be visible during routine inspections, yet they can impact product quality, stability, and shelf life. Detecting and measuring these leaks is essential for ensuring that the container closure system performs as intended.

Why is Helium Used for Leak Detection?

Helium is commonly used as a tracer gas because its molecules are extremely small and can pass through very small leak paths. It is also inert, meaning it does not react with pharmaceutical products or packaging materials.

These properties make helium an effective gas for detecting very small leaks that may be difficult to identify using conventional testing methods.

Where do Leaks Occur in Pharmaceutical Vials?

A vial closure system consists of the glass vial, elastomer stopper, and aluminum crimp seal. Leaks can occur at the stopper-to-vial interface, within the crimp seal area, or through small defects created during manufacturing or handling.

While these leak paths may be microscopic, they can still affect package integrity over time.

How does the SIMS 1915+ Detect Leaks in Vials?

The SIMS 1915+ uses helium tracer gas to evaluate vial integrity. During testing, the vial is exposed to helium and placed inside a test chamber connected to a sensitive detection system.

If a leak is present, helium passes through the defect and is detected by the instrument. The system measures the amount of helium escaping from the vial and converts it into a leak rate value.

This direct measurement approach allows manufacturers to identify active leaks and accurately assess package performance.

How does the SIMS 1915+ Achieve Sensitivity Down to 1×10?¹° mbar·L/sec?

The SIMS 1915+ uses helium tracer gas and a highly sensitive detection system to identify very small leaks in vial packaging.

Because helium molecules are extremely small, they can pass through tiny defects that may be difficult to detect using other package integrity testing methods. The system measures the amount of helium escaping through a leak, allowing manufacturers to obtain an actual leak rate value.

Rather than estimating package performance from pressure changes or other indirect measurements, the SIMS 1915+ directly measures leakage as it occurs. This provides clear and reliable data on container closure integrity.

With sensitivity down to 1×10?¹° mbar·L/sec, the technology can detect extremely small leak paths that could impact product sterility, stability, and shelf life over time.

Conclusion

Maintaining vial integrity is essential for protecting the safety, quality, and stability of pharmaceutical products. The SIMS 1915+ offers an extremely sensitive detection solution to even the smallest leak that could affect product performance over time. The system provides data that is accurate and reliable through the use of helium tracer gas and direct leak rate measurement, which aids package development, validation and quality assurance efforts. With changing packaging demands, SIMS 1915+ enables packaging manufacturers to gain a deeper understanding of the integrity of container closure and to make informed packaging choices throughout the product lifecycle.

Vial leak testing is a critical component of pharmaceutical quality assurance, ensuring container closure integrity (CCI) and protecting drug products from contamination and degradation. For sterile injectables, biologics, and vaccines, even microscopic leaks can compromise product sterility, stability, and shelf life. Advanced helium leak detection systems, particularly SIMS 1915+ technology from PTI Packaging Technologies, provide highly sensitive, quantitative, and deterministic solutions for assessing vial seal integrity. Integrating SIMS 1915+ throughout the product lifecycle from Research & Development (R&D) to full-scale production supports regulatory compliance, reduces risk, and improves overall product quality.

USP <1207> outlines expectations for container closure integrity testing methods that are scientifically justified and capable of producing measurable and repeatable data. Helium leak detection aligns with these expectations by enabling the detection of very small leak paths that are difficult to identify using conventional techniques.

Best Practices in the R&D Phase

During R&D, vial leak testing focuses on method development, test design, and sensitivity evaluation. Helium leak detection using SIMS 1915+ is widely employed at this stage due to its ability to detect extremely small leaks that could compromise sterility.

The SIMS 1915+ system is a vacuum-based helium mass spectrometry solution specifically designed for pharmaceutical container closure integrity testing. The process involves:

• Introducing helium into the vial headspace.
• Placing the helium-filled vial in a vacuum test chamber.
• Detecting and quantifying any escaping helium using a mass spectrometer.

This approach enables precise measurement of leak rates and identification of critical defects that are invisible to traditional inspection methods.

Key best practices during R&D include

• Comparing vial, stopper, and seal designs to identify optimal combinations.
• Establishing deterministic acceptance criteria based on quantitative leak data.
• Validating container performance under various environmental and handling conditions, including low-temperature storage.

By applying SIMS 1915+ early in development, manufacturers can prevent design flaws from progressing into scale-up, reduce costly rework, and generate strong evidence for regulatory submissions.

Choosing the Right Leak Testing Method

Selecting an appropriate leak testing method is essential for protecting product integrity. While various techniques exist, helium leak testing using SIMS 1915+ offers exceptional sensitivity and reliability for high-risk products.

Helium leak detection enables the identification of microleaks that closely correlate with microbial ingress risk. Helium’s small atomic size and inert properties make it ideally suited for precise and accurate leak detection.

SIMS 1915+ not only delivers quantitative leak rate data but also provides clear pass/fail criteria, supporting both development activities and regulatory compliance. Using a single, validated technology from R&D through production ensures consistency, data integrity, and comparability of results across the product lifecycle.

Best Practices During Production

In commercial production, consistency, efficiency, and compliance are paramount. SIMS 1915+ systems are designed for routine quality monitoring, offering objective and repeatable results at high throughput.

Recommended best practices include:

• Establishing regular testing intervals based on risk assessment.
• Maintaining strict control over test parameters to ensure reproducibility.
• Performing routine calibration and preventive maintenance to sustain system sensitivity.
• Aligning testing protocols with regulatory requirements for container closure integrity, including sterility assurance across the product’s shelf life.

By incorporating SIMS 1915+ into production workflows, manufacturers can monitor batch-to-batch consistency, detect deviations early, and maintain robust process control.

Effective vial leak testing is best achieved through a lifecycle-based strategy that extends from early research and development through full-scale commercial production. The application of SIMS 1915+ helium leak detection technology enables pharmaceutical manufacturers to identify microleaks with high sensitivity, verify container closure performance, and define deterministic, science-based acceptance criteria while meeting regulatory expectations. By adopting these best practices, organizations can strengthen container closure integrity, safeguard patient safety, and minimize the risk of product failures or recalls, thereby supporting consistent quality and reliability in pharmaceutical manufacturing.
